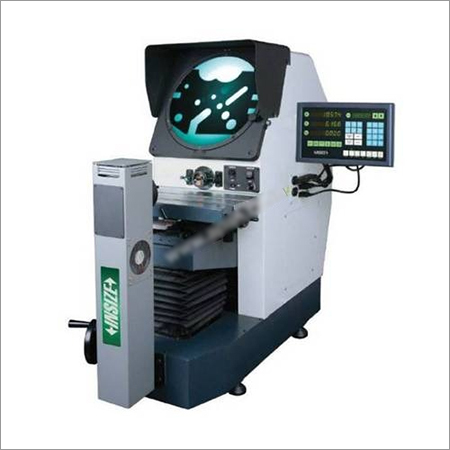

Horizontal Profile Projector

Get a Price/Quote

Horizontal Profile Projector Specification

Operating Voltage
220V AC

Number of Specimens

Mounting Type
Bench-top, anti-vibration feet

Equipment Type
Horizontal Profile Projector

Automation Grade
Manual

Specimen Size

Application
Measurement and inspection of small machined parts, components, and tools

Measuring Range
0-300 mm (X), 0-150 mm (Y)

Test Range

Interface Type
RS232, USB

Port Size

Humidity
Up to 85% RH (non-condensing)

Response Time
Instantaneous

Hardness

Accuracy
0.005 mm

Gas Pressure

Features
Halogen illumination, fine adjustment, digital readout, built-in angle measurement

Display Type
Digital/Analog

Resolution
0.001 mm

Max Height
Up to 100 mm

Temperature
0C to 40C

Frequency
50 Hz

Power Supply
220V AC, 50 Hz

Usage
Metrology laboratory, quality control, tool rooms, production shop

Capacity

Machine Weight
Approx. 150 kg

Test Speed

Test Width

Test Stroke

Control Mode
Manual/Joystick

Safety Standard
CE compliant

Illumination
Transmitted and reflected light with adjustable intensity

Contour Illumination
Halogen Lamp 24V 150W

Lens Mounting
Quick change turret for multiple lens types

Projection Accuracy
±0.02% of image

Surface Illumination
Halogen Lamp 24V 150W

Screen Diameter
300 mm (12 inches)

Rotary Table
Integrated, 360° graduated

Travel Range (Stage)
X: 200 mm, Y: 100 mm

Cooling System
Natural air-cooled

Focus Adjustment
Coarse and fine adjustment via coaxial knobs

Work Table Size
340 mm x 152 mm

Stage Loading Capacity
Up to 10 kg

Magnification Lenses
10X (standard), optional 20X, 50X, 100X

Edge Detection
Manual or optional digital edge detector

Horizontal Profile Projector Trade Information

Main Export Market(s)
Asia

About Horizontal Profile Projector

We are having prominent and reliable name in the market indulged in supplying Horizontal Profile Projector. This is manufactured using supreme quality materials under the observation of our vendors as per the industry standards. It is used a cost effective solution, used minimize the optical aberrations while observing in the labs. Further, this Horizontal Profile Projector can be availed from us at industry-leading rates.

Features:

Easy operation
Consumes less power
Non-interrupted performance

Precision in Measurement and Inspection

Built for accurate inspection, the Horizontal Profile Projector delivers projection precision of 0.02% of image size and resolution up to 0.001 mm. Its large screen, digital/analog readout options, and manual or joystick control ensure reliable and swift evaluation of small components, making it a favored tool in quality assurance processes for manufacturers and laboratories.

Versatile Illumination for Clarity

Equipped with both transmitted and reflected light sources using 24V 150W halogen lamps, the projector offers adjustable intensity to optimize viewing for various specimen types. This versatility, coupled with efficient natural air-cooling and fine focus adjustment, guarantees bright, sharp images for even intricate inspections over long operating hours.

FAQs of Horizontal Profile Projector:

Q: How does a horizontal profile projector benefit measurement and inspection tasks?

A: The horizontal profile projector provides high-resolution, highly accurate image projection (0.02%), enabling users to perform precise dimension and angle checks on small machined components and tools, thus improving quality control and reducing measurement errors.

Q: What is the process for changing magnification lenses on this projector?

A: This instrument features a quick-change turret, allowing users to rapidly switch between the standard 10X lens and optional lenses (20X, 50X, or 100X) without any special tools, making the process swift and user-friendly.

Q: Where can the horizontal profile projector be effectively used?

A: It is ideally suited for use in metrology laboratories, tool rooms, quality control departments, and production shops, particularly where precise measurement of small parts and components is required.

Q: How is fine focus achieved during the inspection process?

A: Both coarse and fine focus adjustments are made easy via coaxial knobs, providing smooth, accurate focusing whether the sample is measured under transmitted or reflected light.

Q: What types of illumination are available and when should each be used?

A: The instrument provides both transmitted and reflected halogen illumination; transmitted light is ideal for contour and edge detection, while reflected light is suited for inspecting surface details. Both offer adjustable intensity for optimal clarity as per specimen requirements.

Q: What safety and operational standards does this projector meet?

A: The profile projector is CE compliant, features natural air-cooling, and is constructed for safe, reliable operation in environments with humidity up to 85% RH (non-condensing) and temperatures from 0C to 40C.
