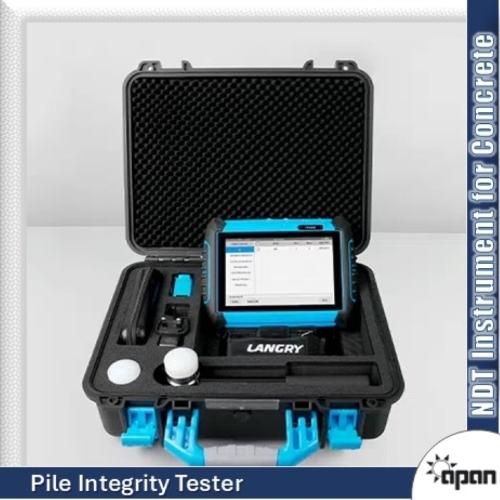

The PIT8300 combines a portable instrument platform with high-resolution signal acquisition and real-time data-processing functions.

Its 8-inch color LCD display, with a resolution of 1280 800, provides a clear interface for viewing test waveforms directly at the job site. The instrument incorporates 24-bit A/D sampling accuracy, supporting detailed acquisition of pile response signals.

The system supports sampling intervals from 1 to 1000 s and provides four selectable sampling lengths: 1024, 2048, 4096, and 8192. This flexibility allows testing personnel to configure acquisition parameters according to the requirements of the particular measurement.

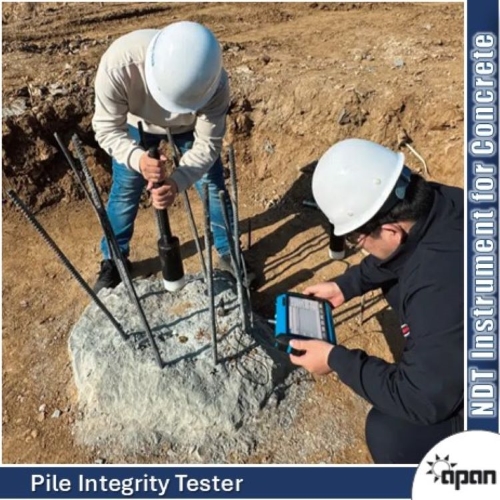

With two channels and an accelerometer sensor with a stated 50g range, the PIT8300 is designed to provide a practical measurement platform for field pile integrity investigations.

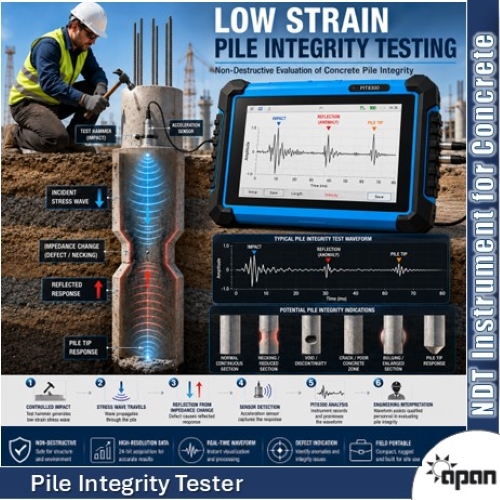

High-Precision Data Acquisition

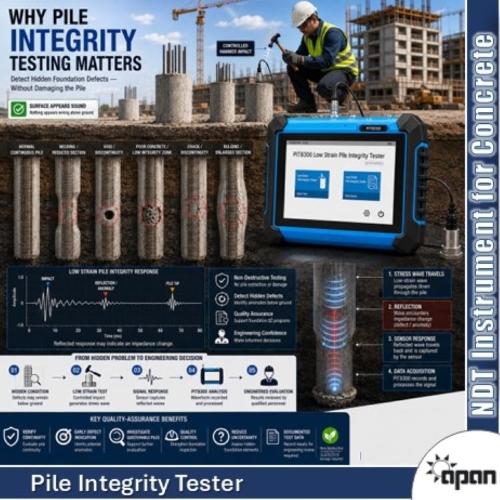

Accurate signal acquisition is fundamental to meaningful pile integrity analysis.

The PIT8300 uses 24-bit A/D data acquisition and high-precision broadband response characteristics to capture pile-testing signals with high resolution. According to LANGRY, the system is designed to provide clear and accurate signal acquisition for low strain testing applications.

High-resolution acquisition can be particularly useful when engineers need to examine subtle changes in waveform response.

The instrument also supports real-time signal processing functions including:

• Smoothing
• Integration
• Filtering
• Exponential amplification
• Linear amplification

These functions can be applied during field testing to improve waveform visualization and assist the operator in evaluating the quality of acquired signals.

Multiple Hammer Waveform Display

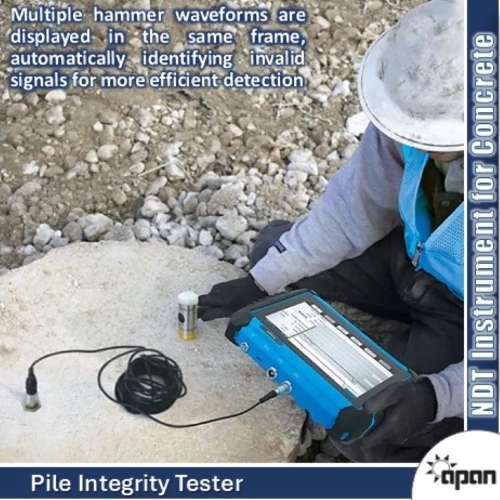

One of the practical advantages of the PIT8300 is its ability to display multiple hammer waveforms in the same frame.

Repeated impacts are commonly used during field testing to evaluate repeatability and improve confidence in the acquired response. The PIT8300 allows multiple waveforms to be viewed together, while its system can automatically identify invalid signals according to the manufacturer's stated functionality.

This helps testing personnel quickly recognize inconsistent measurements and focus on usable data.

The instrument also supports signal overlay and averaging. According to LANGRY, overlaying and averaging can help remove noise-related signals and allow users to review the resulting waveform while eliminating poor-quality signals from consideration.

Real-Time On-Site Waveform Processing

Field testing often requires immediate decisions.

Instead of waiting until the data is transferred to a laboratory or office computer, the PIT8300 provides real-time data processing of detection waveforms on site.

This enables operators to review acquired signals during the inspection and determine whether additional measurements or repeated impacts may be appropriate.

Real-time processing can improve field productivity by helping engineers identify questionable signals before leaving the testing location.

Professional PC Data Analysis Software

Field acquisition is only one part of a professional pile integrity testing workflow.

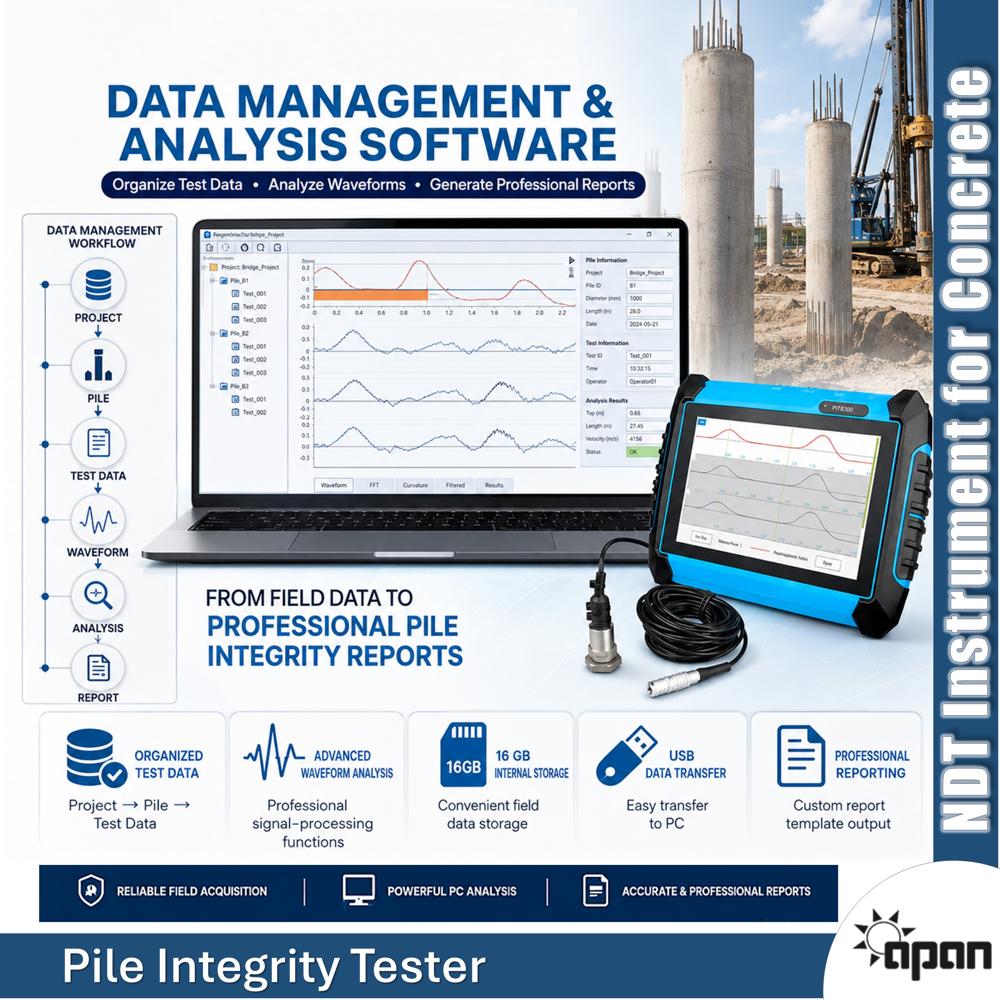

The PIT8300 is supported by professional PC-based data processing and analysis software. The manufacturer states that the software supports multiple signal-processing functions and custom report template output modes.

This allows testing organizations to establish a workflow in which field measurements are transferred to a computer for more detailed analysis, documentation, and reporting.

The combination of field acquisition and PC-based analysis makes the PIT8300 suitable for organizations that require more than basic waveform display.
