SP60 Spectrophotometer

Get a Price/Quote

SP60 Spectrophotometer Specification

Mounting Type
Handheld

Accuracy
0.01 units

Operating Voltage
100-240V AC

Application
Color measurement & analysis

Power Supply
100-240V AC, 50/60Hz

Measuring Range
0 to 200% reflectance

Interface Type
RS-232, USB

Specimen Size
Minimum 10x20 mm

Humidity
10% to 85% (non-condensing)

Automation Grade
Manual

Test Range
0 to 200% reflectance

Equipment Type
Portable Spectrophotometer

Frequency
50/60 Hz

Display Type
LCD Display

Temperature
10C to 40C

Number of Specimens
Single Specimen

Port Size
RS-232

Features
Highly portable, ergonomic, with rechargeable battery support

Resolution
0.01 units

Response Time
Approx. 2 seconds

Usage
Color quality control in industries

Machine Weight
2.2 kg

Test Speed
Standard

Test Width
8 mm aperture

Control Mode
Manual

Wavelength Range
400 - 700 nm

Illuminants
A, C, D65, F2, F7, F11, F12 selected in device

Data Storage
Up to 1,024 readings

Battery Working Time
Approx. 1,000 measurements per full charge

Software Compatibility
Compatible with color management and quality software

Battery Type
Rechargeable NiMH

Measurement Geometry
d/8 (diffuse/8-degree) with specular inclusion/exclusion

Light Source
Pulsed Xenon lamp

Dimensions
23 cm x 8 cm x 10 cm

Languages Supported
English, Chinese, German, French, Italian, Spanish

Weight with Battery
2.2 kg

Calibration
Automatic white calibration

Operating System Support
Windows

Repeatability
Standard deviation within 0.05 units

Spectral Bandwidth
10 nm

SP60 Spectrophotometer Trade Information

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

About SP60 Spectrophotometer

As a Authorized dealer we are engaged in providing the broad assortment of wide gamut of optical instruments

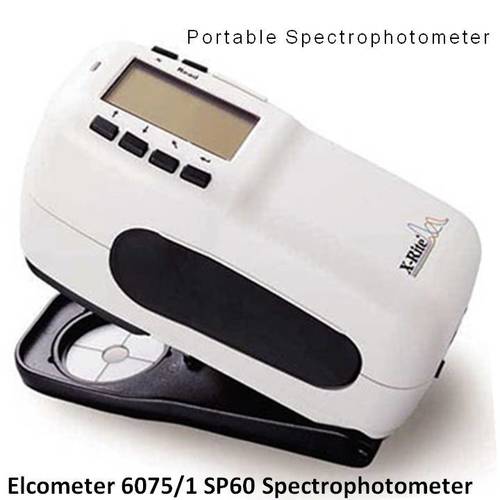

The Elcometer 6075/1 SP60 is a portable sphere spectrophotometer, designed to give fast, precise and accurate colour measurement information on materials ranging from paper and paint to plastics and textiles.

Lightweight, compact, portable instrument
Diffuse/8 sphere optical geometry
Fixed 8mm aperture
Large, easy-to-read graphical LCD display
Opacity and colour strength measurement
Simultaneous measurement of both specular component included and specular component excluded
Rugged construction
Rechargeable battery for remote use

Key Features

Measuring Functions and Indices : The Elcometer SP60 Portable Spectrophotometer provides absolute and difference measurements for the following colourmetric systems. These values can be obtained from any of the nine illuminants with 2 or 10 observer angle: L*a*b*, DL*Da*Db*, L *C*h, DL*DC*DH*, DE*ab, DECMC, DE CIE94 and XYZ. Whiteness and Yellowness per ASTM E 313-98.

Pass/Fail Mode : The portable spectrophotometer instrument stores up to 1024 standards with tolerances for easy pass/fail measurement. A red/green LED indicator and the LCD display provide visual confirmation of results. A tone also sounds to indicate a fail result and measurement completion.

Quick Colour Compare : A quick measurement can be taken to compare two colours. This allows the operator to take quality control readings in a time efficient manner without having to create tolerances or store data.

The Sphere : The Elcometer SP60s diffusing sphere is made of Spectalon , a durable, highly reflective material designed to perform in a rigorous production environment. The diffusing material prevents degradation due to the flaking and chipping of the sphere wall material.

Opacity, Colour Strength and Shade Sorting : The portable spectrophotometer instrument can measure opacity as well as three colour-strength options: chromatic, apparent and tri-stimulus calculations. The Elcometer SP60 Portable Sphere Spectrophotometer also performs 555 shade sorting. This is an important consideration in the colour quality control of manufactured products involving plastics, painted or textile materials.

Texture and Gloss influence : To determine the influence of the specular component, the SP60 Portable Sphere Spectrophotometer allows simultaneous measurement of both specular - included (colour) and specular-excluded (appearance).

Specification

Illuminant Types	C,D50,D65,D75,A,F2,F7,F11,F12
Wavelength Range	400-700nm
Type	Portable
Light Source	Gas filled tungsten lamp
Standard a	AS/NZS 1580.601.3,ASTM C 609,ASTM D 2244,ASTM E 1164,ASTM E 308,ASTM E 313,BS 8493
Standard Observers	2 deg. and 10 deg.
Standarad c	ISO 7724-2,ISO 7724-3,JIS K 5600-4-5,JIS K 5600-4-6,NF T36-006,NF X08-012-1,NF X08-012-2
Standarad b	DIN 5033-2,DIN 5033-3,DIN 5033-4,DIN 5033-7,DIN 6174,EN 12373-12,EN 13523-15
Memory	1,024 standards with tolerances,2,000 samples
Measuring Geometrics	d/8,DRS spectral engine,fixed aperture 8mm viewing / 12mm illumination

Precise Color Measurement Anywhere

The SP60 Spectrophotometer is specifically engineered for portability and accuracy, allowing professionals to perform reliable color analysis in multiple locations. Its durable structure and ergonomic design mean high precision color checks are possible wherever you need them. The device accommodates a wide spectrum of reflectance values, ensuring comprehensive color quality assessment.

Advanced Features and Seamless Integration

With its pulsed Xenon light source, automatic white calibration, and versatile illuminant settings, the SP60 delivers dependable results for quality control. The inclusion of both RS-232 and USB connectivity enables straightforward data transfer and integration with industry-standard color software, streamlining workflows in quality labs or production floors.

Exceptional Performance and Usability

Designed with ease of use in mind, the SP60s LCD display, intuitive manual controls, and fast response time (2 seconds per measurement) speed up color testing tasks. Its rechargeable NiMH battery allows for up to 1,000 measurements per full charge, making it ideal for busy work environments with high throughput demands.

FAQs of SP60 Spectrophotometer:

Q: How does the SP60 Spectrophotometer achieve accurate color measurements?

A: The SP60 Spectrophotometer utilizes a d/8 measurement geometry with a pulsed Xenon lamp and multiple selectable illuminants such as A, C, D65, and various fluorescent types. Its automatic white calibration function and 10 nm spectral bandwidth ensure consistent, accurate results across a wide measurement range (0 to 200% reflectance).

Q: What is the process for calibrating the SP60 Spectrophotometer?

A: Calibration is straightforward and automatic on the SP60. The device features automatic white calibration, which is performed as part of the start-up process, minimizing user intervention and guaranteeing reliable reference standards for each measurement session.

Q: When should I recharge the SP60s battery, and how long does it last?

A: The SP60 operates on a rechargeable NiMH battery, typically supporting approximately 1,000 measurements per full charge. It is best to recharge the device once you complete close to this number of measurements, or as indicated by the battery status icon on the LCD display.

Q: Where can the SP60 Spectrophotometer be used effectively?

A: Thanks to its portable, handheld design, the SP60 is effective in a wide variety of settingsfrom factory floors and laboratories to field locations. Its robust specifications allow it to handle environments with temperatures from 10C to 40C and humidity between 10% and 85% (non-condensing).

Q: What are the benefits of using the SP60 Spectrophotometer in color quality control?

A: The SP60 offers high accuracy (0.01 units), fast results, comprehensive data storage, and portability, making it a valuable tool for ensuring color consistency and meeting industry standards. It helps reduce production errors, speeds up quality assessments, and improves overall product appearance.

Q: How do I transfer measurement data from the SP60 to a computer?

A: The SP60 features both RS-232 and USB interfaces, allowing for easy data export to compatible color management and quality software on Windows operating systems. This streamlines data analysis and reporting tasks.

Q: What specimen sizes and types can the SP60 accommodate?

A: The SP60 is designed to measure single specimens with a minimum size of 10x20 mm and an 8 mm test aperture, making it suitable for a wide array of sample types in various industries.
